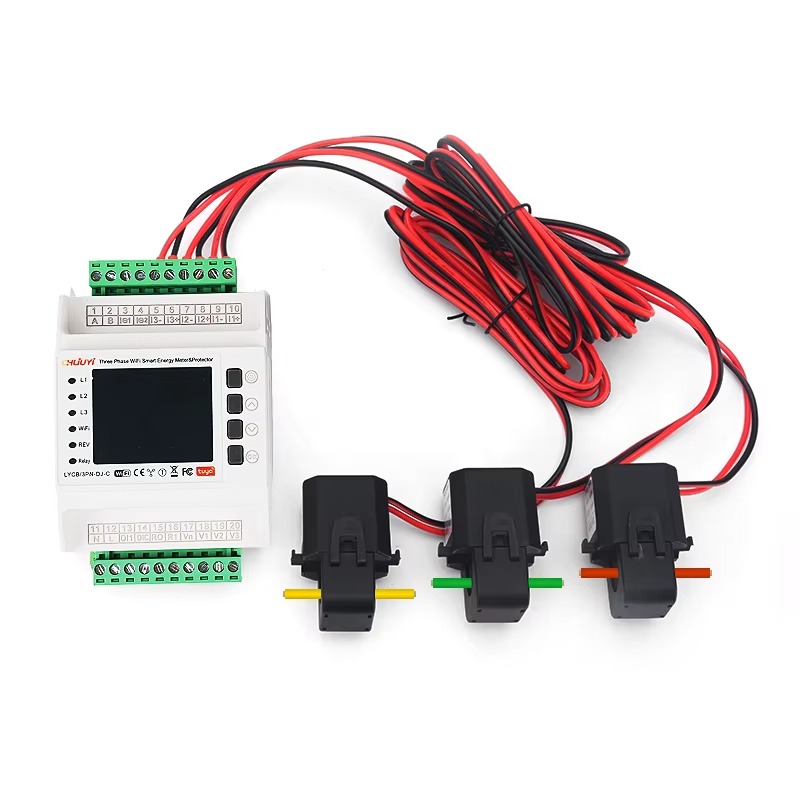

Tuya 3 Phase Bidirectional WiFi Smart Energy Meter 200A CT

Monitor and manage your electricity usage with the Tuya 3 Phase Bidirectional WiFi Smart Energy Meter with 200A CT. Designed for three-phase electrical systems, it measures energy imported from the grid and energy exported to the grid, making it especially useful for solar and net-metering applications.

With built-in WiFi, you can connect the meter to the Tuya Smart Life app and monitor your energy data remotely from your smartphone. Track electricity consumption, solar generation, power, voltage, and current for better energy management.

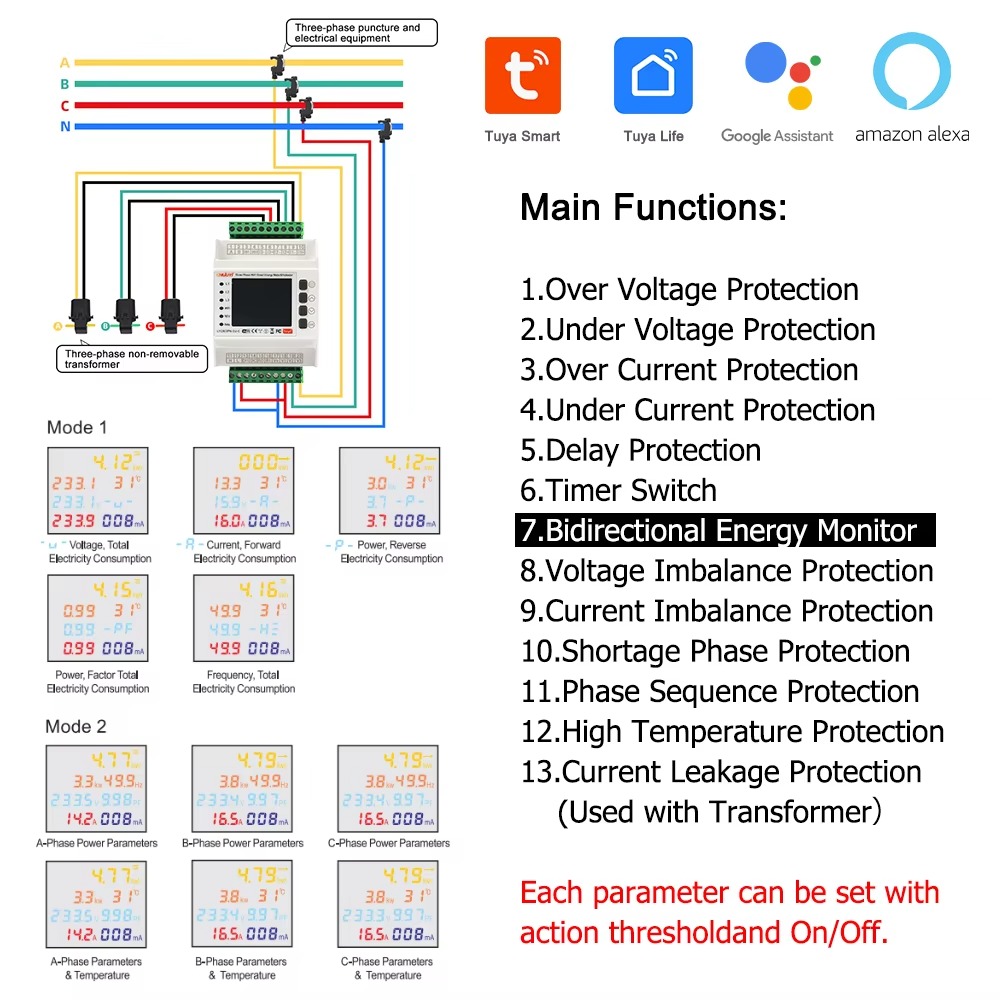

Tuya 3 Phase Bidirectional WiFi Smart Energy Meter with 200A CT Features:

• 3-phase energy monitoring
• Bidirectional import and export measurement
• WiFi connectivity with Tuya Smart Life app
• Real-time electricity monitoring
• Monitor voltage, current, power, and energy
• Ideal for solar and net-metering systems
• Suitable for homes, offices, shops, and commercial properties
• Helps monitor and optimize electricity consumption.

22-in-1 Smart Functions:

1. Reverse Metering (Bidirectional)
   Perfect for solar and grid-tied systems, it measures energy in both directions.
2. Forward Metering
   Tracks standard one-way energy consumption with high accuracy.
3. Overvoltage Protection (120–300V Adjustable)
   Automatically disconnects when voltage exceeds safe levels.
4. Under Voltage Protection (80–210V Adjustable)
   Protects connected devices during voltage drops.
5. Over Current Protection (1–100A Adjustable)
   Cuts off power supply when excessive current is detected.
6. Under Current Protection (1–100A Adjustable)
   Detects abnormally low current and initiates safety shutdown.
7. Delay Time Protection (1–9999s Adjustable)
   Adds a recovery delay after faults for stable operation.
8. Voltage Imbalance Protection
   Prevents system damage by detecting voltage instability across phases.
9. Current Imbalance Protection
   Ensures balanced phase loading and system safety.
10. Temperature Protection (10–85℃ Adjustable)
    Shuts down to prevent overheating.
11. Shortage Phase Protection
    Turns off power when any phase fails.
12. Phase Sequence Protection
    Maintains correct phase order to protect motors.
13. Timer & Schedule Settings
    Automate energy usage with custom schedules.
14. Expense Management (Unit Locking)
    Lock energy use based on set units to control electricity costs.
15. Device Sharing
    Monitor and control via the app with up to 10 authorized users.
16. Tuya Smart Life App Control
    Access your 3 Phase Smart WiFi Meter from the mobile app (Available on Android and iOS).
17. Voice Control (Alexa & Google Assistant)
    Hands-free operation using voice commands.
18. Dual Display Mode (M1, M2)
    Switch between two intuitive display modes.
19. Time Threshold Control
    Set time-based energy limits to enhance safety.
20. Manual Control Option
    Convenient physical control without needing the app.
21. Color LCD Screen
    Real-time monitoring with vibrant, easy-to-read visuals.
22. Easy Installation
    Any qualified electrician can easily install the product.

A smart and convenient solution for three-phase energy monitoring, solar systems, and smart energy management in Pakistan.
